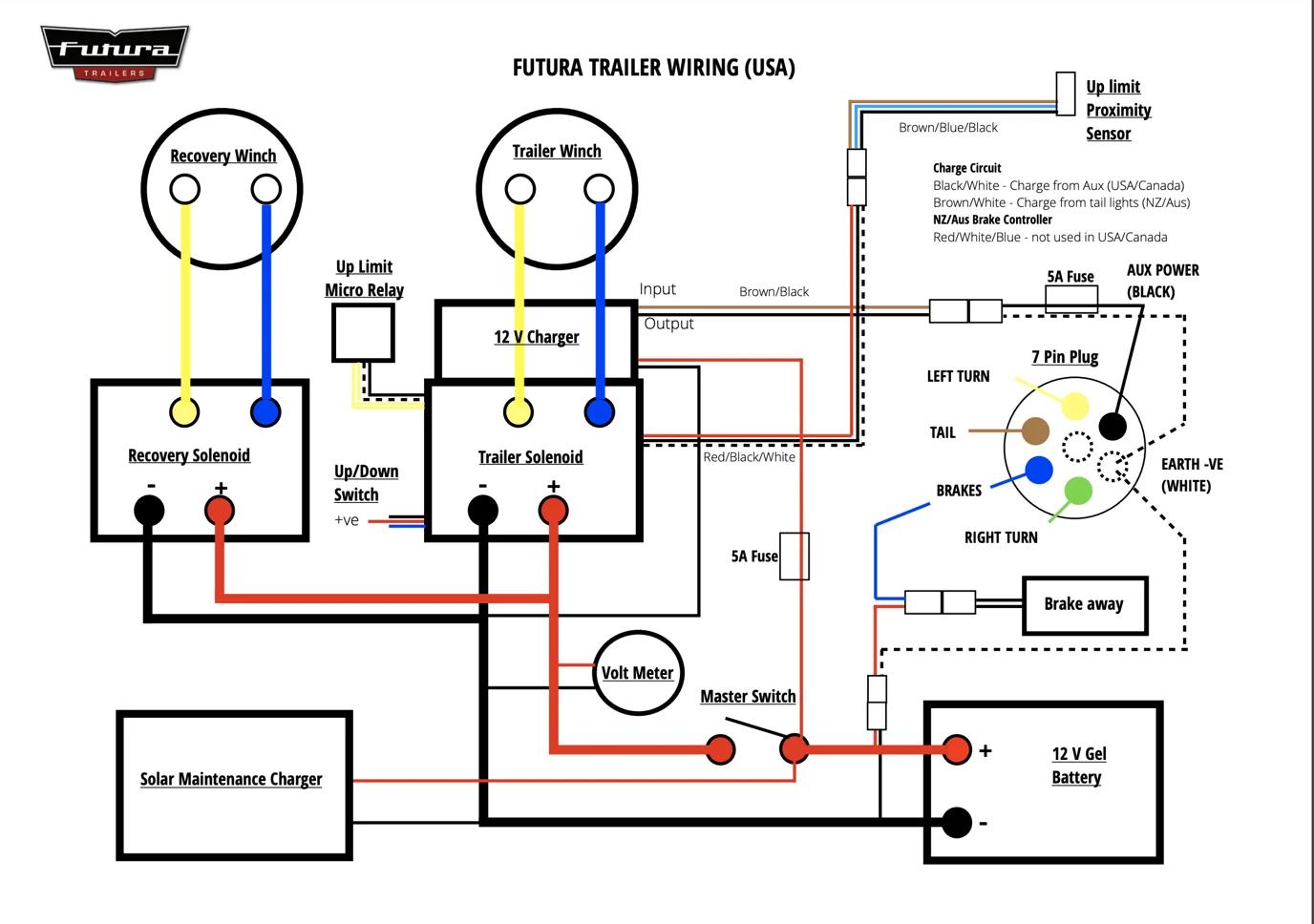

Futura Lowering Trailer Wiring Diagram (Pre SmartControl™)

Manuals & Guides

Click this link to open a printable PDF copy of the lowering trailer wiring diagram.

Tech Info Futura - Control Wiring Diagram - Pre SmartControl

Tech Info Futura - Light and Brake Wiring Diagram - Vehicle Trailer
